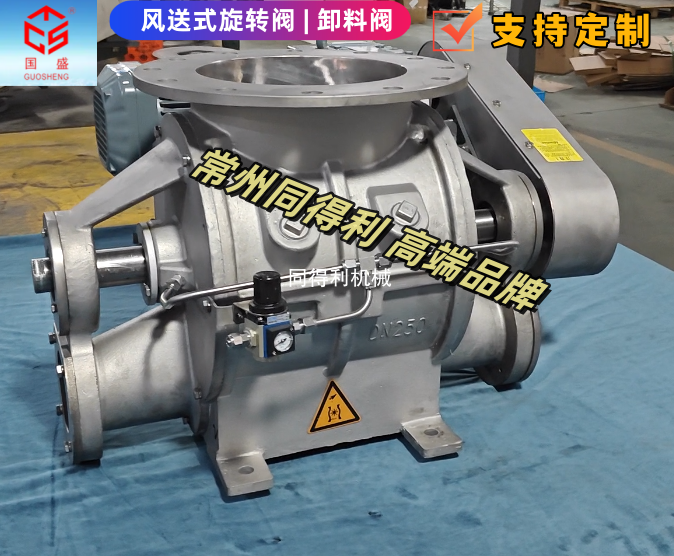

星型旋轉閥常用在氣力輸出系統中。對于壓力輸出系統或負壓輸出系統，星型旋轉閥可以均勻、連續地向輸料管供料，以保證氣力輸出管內的氣、固態比較穩定，從而使氣力輸送能正常工作，同時又能將旋轉閥的上、下部氣壓隔斷而起到鎖氣作用。因此，星型旋轉閥是氣力輸送系統中常用的重要設備?！　tar shaped rotary valves are commonly used in pneumatic output systems. For pressure output systems or negative pressure output systems, star shaped rotary valves can uniformly and continuously supply material to the conveying pipe to ensure that the gas and solid in the pneumatic output pipe are relatively stable, so that the pneumatic conveying can work normally. At the same time, they can also block the upper and lower air pressure of the rotary valve and play a role in air locking. Therefore, the star shaped rotary valve is an important equipment commonly used in pneumatic conveying systems.　　正壓稀相輸送的介質一般采用空氣或氮?dú)?，?dòng)力提供一般由羅茨鼓風機提供，氮?dú)廨斔蜁r(shí)則有制氮機進行提供。羅茨鼓風機的稀相輸送時，物料在管道中呈懸浮狀態，輸送距離可以達百米，氣流速度較高?！　∮捎谙到y(tǒng)處于正壓，所以密封性要求很高，若有一絲泄漏就會造成供料端或者整個系統的粉塵外溢;系統物料采用吹送式?！倦娫?微信咨詢：陳經理18068546632】　　風送式旋轉閥：　　針對物料粘接，風力直吹轉子清理物料?！　≈饕馁|(zhì)：碳鋼、不銹鋼304-316、鈦合金、鋁合金、各種合金、陶瓷、尼龍系列等。　　氣密封裝置：高精度密封鎖氣，防止物料在輸送過程中的泄漏，?確保系統的正常運行。?【電話/微信咨詢：陳經理18068546632】　　軸承外置式：有效的防止粉塵侵入軸承，增大設備適應較高溫度的使用范圍?！　◎?qū)動方式：鏈驅動/馬達直連驅動口?！　?dòng)力配置：擺線針輪減速機、Y系列電機(可按客戶指定動力配置)?！倦娫?微信咨詢：陳經理18068546632】　　常州同得利機械廠擁有多年的研發生產/定制卸料閥旋轉閥的經驗，秉承質量第 一、用戶至 上的原則。我們的旋轉閥能夠處理鋰電池、鋼廠、電廠、水泥、礦山、環保、塑料、化工、食品和醫藥等行業的各種顆粒、片狀、塊狀物料、粘料、粉料、超微粉體等。           【電話/微信咨詢：陳經理18068546632】      《掃二維碼-添加 陳經理 微信-咨詢正負壓輸送旋轉閥》　　部分客戶需求：　　1、替代意大利威埃姆，物料：動物飼料里面的預混料，閥體材質：不銹鋼304;閥板材質：不銹鋼304;帶瓜片;轉速：20rpm/min;功率0.75kw，非防爆電機，380V,50Hz;硬齒面減速電機,IE3能效等級電機;帶軸承端蓋保護;CE認證?！　?、旋轉給料閥：DN150.物料名稱：抗氧劑，物料堆積密度：400~600kg/m3.工況：氣力輸送,工作溫度：50°C,與物料接觸材質CF8/SS304.輸送能力0.3~0.35T/h,主體結構：開式葉輪,軸氣封,軸承外置,背包式,容積效率:45%,葉輪轉速18rpm?！　?、火力發電廠在省煤器出口、SCR脫硝入口段，抽取部分煙氣進行高溫?zé)煔獾某龎m。輸灰用羅茨風機、工頻旋轉給料閥，現場除塵裝置已配置收灰的儲灰罐，需要在儲灰緩沖罐下加裝正壓稀相氣力輸送系統。煙氣溫度：在300∽400℃范圍內;輸送介質：煙氣中的粉煤灰;輸送能力：輸送容積0.7∽2m3/h，按不小于2m3/h設計選型;輸送粉煤灰的重量約1600kg/h?！倦娫?微信咨詢：陳經理18068546632】　　4、物料：飼料顆料，正壓輸送，500公斤/小時，變頻，鎖氣功能，出口到國外需要CE認證?！　?、物料：生物質顆粒，直徑5mm、長度40mm以下，正壓氣力輸送，50kg/h?！　?、水硫酸鋁粉末定量穩定輸送，每小時60公斤左右，微正壓，無氧無水環境要求能通過DCS自動控制?！　?、物料：板材行業的砂光粉，配羅茨風機用，正壓輸送，進口360*280高400.每小時2立方?！　?、物料：輸送催化劑，正壓氣力輸送，6~8噸/小時，溫度在500度左右，配水冷耐高溫型?！　?、粉料，儲料罐小罐輸送到大罐，正壓輸送，每小時輸送量12噸，要?dú)饷芊?，防軸兩端漏料?！倦娫?微信咨詢：陳經理18068546632】　　10、化肥助劑粉料，卸料量五百公斤/小時，密度0.8.正壓輸送，變頻，需要鎖氣功能?！　?1、物料：鋁粉，正壓輸送，DN200.伺服電機?！　?2、物料：塑料粉塵  正壓輸送 末端除塵器鎖氣卸料用，需求：低泄漏率的鎖氣卸灰閥?！　?3、替代澤普林旋轉閥，物料：糖粉面粉,風送有正壓和負壓，DN150.DN200.DN300.DN500.　　14、物料：草銨膦粉料，正壓6000-9000Pa，密封鎖氣，防堵型DN200.　　15、DN150不銹鋼關風機，正壓輸送食品粉體，旋轉閥需要拋光，配清洗型可以定期清理，側開門式?！倦娫?微信咨詢：陳經理18068546632】　　16、食品粉料，正壓輸送用，食品級旋轉閥，氣密封，要清洗型，輸送量1.5T/h?！　?7、輸送物料：顆粒食用鹽，輸送量 5T/h，快拆式，材質 304.法蘭標準 GB，SEW減速機;設備用途，正壓風力輸送使用;輸送設計壓力：50Kpa?！　he medium for positive pressure dilute phase transportation is generally air or nitrogen, and the power supply is usually provided by a Roots blower. When transporting nitrogen, a nitrogen generator is used. During the dilute phase conveying of Roots blower, the material is suspended in the pipeline, with a conveying distance of up to 100 meters and a high airflow velocity.　　Due to the positive pressure of the system, high sealing requirements are required. Any slight leakage can cause dust to overflow from the feeding end or the entire system; The system materials are blown.　　Pneumatic rotary valve:　　For material bonding, the rotor is blown directly by wind to clean the material.　　Main materials: carbon steel, stainless steel 304-316. titanium alloy, aluminum alloy, various alloys, ceramics, nylon series, etc.　　Airtight sealing device: high-precision sealing and gas locking to prevent material leakage during transportation and ensure the normal operation of the system. ?　　External bearing: effectively prevents dust from entering the bearing and increases the equipment's adaptability to higher temperatures.　　Drive mode: chain drive/motor directly connected to the drive port.　　Power configuration: Cycloid pinwheel reducer, Y series motor (can be configured according to customer's specified power).

正壓稀相輸送：它是利用低于3kg/cm2 的氣體壓力，采用正壓(吹送式)，以較高的速度來推動或拉動物料使其通過整條輸送線，因此該輸送方式被稱之為低壓高速系統，它具有較高的氣體-物料比。正壓稀相輸送的介質一般采用空氣或氮?dú)?，?dòng)力提供一般由羅茨鼓風機提供，氮?dú)廨斔蜁r(shí)則有制氮機進行提供。羅茨鼓風機的稀相輸送時，物料在管道中呈懸浮狀態，輸送距離可以達百米，在該系統的開始端約有600m/min 的加速度，在末端可達2000m/min 的高速，因此氣流速度較高。輸送管線初端壓力一般低于0.05Mpa，而末端則與大氣壓基本接近。正壓稀相輸送系統：適用于單點對單點，單點對多點的輸送。正壓稀相輸送系統特點：由于系統處于正壓，所以密封性要求很高，若有一絲泄漏就會造成供料端或者整個系統的粉塵外溢;系統物料采用吹送式，所以末端物料容易從卸料口排出，因此末端構造較簡單;但系統的輸送溫度較高，對于一些特殊易熱敏物料必須做降溫處理;羅茨風機作為動力源，壓力不能達到很高，故輸送距離和產量不能同時取zui大值。負壓稀相輸送系統采用負壓羅茨泵動力源，管道輸送壓力呈低真空狀態，管道風速約10—35m/秒，物料在管道里呈霧狀。負壓輸送起點壓力等于或接近大氣壓，終點壓力在-10至~50Kpa之間，管道真空度沿輸送管道逐漸增高。負壓稀相輸送系統也稱為真空稀相輸送系統。星型卸料器特點：星型卸料器是氣力輸送系統中的關鍵設備。也是除塵和加料系統的常用設備。根據特性、用途和使用條件的不同，星型卸料器有多種結構型式，星型卸料器的選型要根據被輸送物料的特性如堆積密度、物料溫度、吸潮性、含水量、粒徑、流動性、硬度、腐蝕性等來決定的?！倦娫?微信咨詢：陳經理18068546632】常州同得利機械廠主要制造適用于粉體、顆粒、粘性的，含堅硬雜質的以及高溫高壓或高真空情況下使用的特殊結構的星型卸料器。以及超小尺寸的卸料器，都是非常規結構特殊非標定制。我公司專 業生產(B)GFY、YJD系列關風機(關風器)、星型卸料器、DS系列電動鎖氣器、DN型旋轉閥，快開閥、清潔閥、風送式旋轉閥等產品。廣泛應用于鋰電池、糧食、飼料、石油化工、制藥、淀粉、油脂、化工干燥、塑料、除塵、冶金、環保、電子、煤炭、建筑、電力機械等行業設備上。用于固體粒料、粉料、超微粉體在氣力輸送及管網正負壓狀態下的卸料?！倦娫?微信咨詢：陳經理18068546632】     《掃二維碼-添加 陳經理 微信-咨詢正負壓輸送卸料閥》Positive pressure dilute phase conveying: It uses gas pressure below 3kg/cm2 and adopts positive pressure (blowing type) to push or pull materials through the entire conveying line at a high speed. Therefore, this conveying method is called low-pressure high-speed system, which has a high gas material ratio.The medium for positive pressure dilute phase transportation is generally air or nitrogen, and the power supply is usually provided by a Roots blower. When transporting nitrogen, a nitrogen generator is used. When the Roots blower is used for dilute phase conveying, the material is suspended in the pipeline, and the conveying distance can reach up to 100 meters. At the beginning of the system, there is an acceleration of about 600m/min, and at the end, it can reach a high speed of 2000m/min. Therefore, the airflow velocity is relatively high. The initial pressure of the conveying pipeline is generally lower than 0.05Mpa, while the end pressure is basically close to atmospheric pressure.Positive pressure dilute phase conveying system: suitable for single point to single point and single point to multi-point conveying.Characteristics of positive pressure dilute phase conveying system:Due to the positive pressure of the system, high sealing requirements are required. Any slight leakage can cause dust to overflow from the feeding end or the entire system; The system material adopts a blowing type, so the end material is easily discharged from the discharge port, so the end structure is relatively simple; But the conveying temperature of the system is relatively high, and cooling treatment must be carried out for some special heat sensitive materials; As a power source, the Roots blower cannot achieve very high pressure, so the conveying distance and output cannot be maximized simultaneously.The negative pressure dilute phase conveying system adopts a negative pressure Roots pump power source, and the pipeline conveying pressure is in a low vacuum state. The pipeline wind speed is about 10-35m/s, and the material is in a mist state in the pipeline. The starting pressure of negative pressure conveying is equal to or close to atmospheric pressure, and the ending pressure is between -10 and~50Kpa. The vacuum degree of the pipeline gradually increases along the conveying pipeline. The negative pressure dilute phase conveying system is also known as the vacuum dilute phase conveying system.

適用于常規物料的正壓負壓輸送卸料，加工精度高，漏氣系數小，下料穩定。

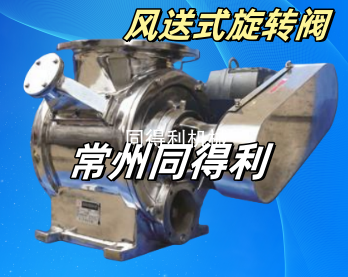

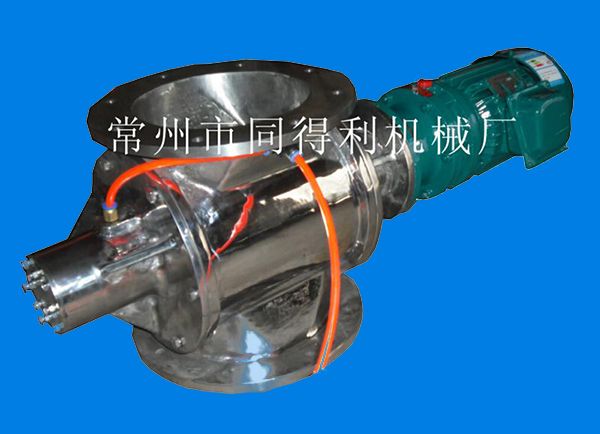

       正壓稀相輸送的介質一般采用空氣或氮?dú)?，?dòng)力提供一般由羅茨鼓風機提供，氮?dú)廨斔蜁r(shí)則有制氮機進行提供。羅茨鼓風機的稀相輸送時，物料在管道中呈懸浮狀態，輸送距離可以達百米，氣流速度較高。The medium for positive pressure dilute phase transportation is generally air or nitrogen, and the power supply is usually provided by a Roots blower. When transporting nitrogen, a nitrogen generator is used. During the dilute phase conveying of Roots blower, the material is suspended in the pipeline, with a conveying distance of up to 100 meters and a high airflow velocity.       由于系統處于正壓，所以密封性要求很高，若有一絲泄漏就會造成供料端或者整個系統的粉塵外溢;系統物料采用吹送式。Due to the positive pressure of the system, high sealing requirements are required. Any slight leakage can cause dust to overflow from the feeding end or the entire system; The system materials are blown.        風送式旋轉閥的工作原理是通過閥芯的旋轉來改變物料輸送：粉體/顆粒料/粉料/固體料的通道，?同時依靠密封機構和驅動裝置來保證閥門的密封性能和控制精度?！倦娫?微信咨詢：陳經理18068546632】?The working principle of the pneumatic rotary valve is to change the material conveying channels of powder/particle/powder/solid materials through the rotation of the valve core, while relying on the sealing mechanism and driving device to ensure the sealing performance and control accuracy of the valve.       負壓稀相輸送系統采用負壓羅茨泵動力源，管道輸送壓力呈低真空狀態，管道風速約10~35m/秒，物料在管道里呈霧狀。負壓輸送起點壓力等于或接近大氣壓，終點壓力在-10至~50Kpa之間，管道真空度沿輸送管道逐漸增高。負壓稀相輸送系統也稱為真空稀相輸送系統。【電話/微信咨詢：陳經理18068546632】The negative pressure dilute phase conveying system adopts a negative pressure Roots pump power source, and the pipeline conveying pressure is in a low vacuum state. The pipeline wind speed is about 10-35m/s, and the material is in a mist state in the pipeline. The starting pressure of negative pressure conveying is equal to or close to atmospheric pressure, and the ending pressure is between -10 and~50Kpa. The vacuum degree of the pipeline gradually increases along the conveying pipeline. The negative pressure dilute phase conveying system is also known as the vacuum dilute phase conveying system.       常州同得利機械廠擁有多年的研發生產/定制卸料閥旋轉閥的經驗，秉承質量第 一、用戶至 上的原則。我們的旋轉閥能夠處理鋰電池、鋼廠、電廠、水泥、礦山、環保、塑料、化工、食品和醫藥等行業的各種顆粒、片狀、塊狀物料、粉料、超微粉體等?！倦娫?微信咨詢：陳經理 18068546632】       我公司是集科研、開發、設計、制造、售后服務于一體的環保型機械重 點企業。公司地處經濟發達的長江金三角，坐落在全國聞名的科技示范城-龍城常州，地理位置優越，千年古運河入境而過，沿江高速、京滬高速、滬寧高速縱橫交錯，交通十分便利。    《掃二維碼-添加 陳經理 微信-咨詢正負壓稀相輸送旋轉閥-氣力輸送旋轉閥》Changzhou Tongdeli Machinery Factory has many years of experience in research and development, production/customization of discharge valve rotary valves, adhering to the principle of quality first and customer first. Our rotary valves are capable of handling various types of particles, flakes, blocks, powders, ultrafine powders, etc. in industries such as lithium batteries, steel mills, power plants, cement, mining, environmental protection, plastics, chemical, food, and pharmaceuticals.Our company is a key environmentally friendly machinery enterprise that integrates scientific research, development, design, manufacturing, and after-sales service. The company is located in the economically developed Yangtze River Golden Triangle, in the nationally renowned science and technology demonstration city - Longcheng Changzhou, with a superior geographical location. The millennium old canal enters the country, and the Yangtze River Expressway, Beijing Shanghai Expressway, and Shanghai Nanjing Expressway crisscross, making transportation very convenient.

　　風送式旋轉閥/卸料閥壓力范圍：2kg/cm2系統壓力或壓差?！　≡龃笕肟?出口：正方形，沒有截面尺寸對料流的限 制從而可達高產量?！　≥S承外置式：有效的防止粉塵侵入軸承，增大設備適應較高溫度的使用范圍?！　◎?qū)動方式：鏈驅動/馬達直連驅動口。　　正壓稀相氣力輸送系統是采用羅茨風機或者羅茨空壓泵作為動力源。利用空氣動能作為輸送介質，物料以比較高的速度并以分散懸浮的狀態在管道中輸送。輸送的壓力一般根據工況條件不同可在幾千帕到幾百千帕范圍內調整。　　正壓密相輸送系統采用壓縮空氣作動力源傳輸物料。采用強制性氣力輸送，依靠密閉壓力容器(發送罐)作發送器，一般氣源壓力為0.5 Mpa～0.7Mpa，運行壓力0.3～0.5Mpa，發送罐只能采取間隙性輸送方式，輸送路程可達1000m以上。物料在管道內以較低速度、沙丘狀態、流態化或團聚狀態輸送的方式稱為正壓密相輸送?！倦娫?微信咨詢：陳經理18068546632】    《掃二維碼-添加 陳經理 微信-咨詢不銹鋼氣力輸送旋轉閥》　　Pressure range of pneumatic rotary valve/discharge valve: 2kg/cm 2 system pressure or pressure difference.　　Increase inlet/outlet: Square, without cross-sectional size restrictions on material flow, thus achieving high yield.　　External bearing: effectively prevents dust from entering the bearing and increases the equipment's adaptability to higher temperatures.　　Drive mode: chain drive/motor directly connected to the drive port.

　　正壓稀相氣力輸送系統是采用羅茨風機或者羅茨空壓泵作為動力源。利用空氣動能作為輸送介質，物料以比較高的速度并以分散懸浮的狀態在管道中輸送。輸送的壓力一般根據工況條件不同可在幾千帕到幾百千帕范圍內調整。　　正壓氣力輸送利用氣體動壓，物料以較高速度在輸送管道中前進(8m/s-25m/s )，輸送壓力沿輸送管道逐漸降低。　　卸料閥/星型卸料器/旋轉閥常用在氣力輸出系統中。對于壓力輸出系統或負壓輸出系統，星型卸料器可以均勻、連續地向輸料管供料，以保證氣力輸出管內的氣、固態比較穩定，從而使氣力輸送能正常工作，同時又能將卸料器的上、下部氣壓隔斷而起到鎖氣作用。因此，星型卸料器是氣力輸送系統中常用的重要部件?！倦娫?微信咨詢：陳經理18068546632】　　正壓風送卸料閥針對物料粘接，風力直吹轉子清理物料?！　≈饕馁|(zhì)：不銹鋼304-316、鈦合金、鋁合金、各種合金?！倦娫?微信咨詢：陳經理18068546632】     《掃二維碼-添加 陳經理 微信-咨詢防卡型正壓風送卸料閥》　　The positive pressure dilute phase pneumatic conveying system uses Roots blower or Roots air pump as the power source. Using air kinetic energy as a conveying medium, materials are transported in pipelines at relatively high speeds and in a dispersed and suspended state. The conveying pressure can generally be adjusted within the range of several thousand pascals to several hundred kilopascals according to different working conditions.　　Positive pressure pneumatic conveying utilizes gas dynamic pressure to move materials at a high speed (8m/s-25m/s) in the conveying pipeline, and the conveying pressure gradually decreases along the conveying pipeline.　　Unloading valves/star shaped unloaders/rotary valves are commonly used in pneumatic output systems. For pressure output systems or negative pressure output systems, the star shaped unloader can uniformly and continuously feed the conveying pipe to ensure that the gas and solid in the pneumatic output pipe are relatively stable, so that the pneumatic conveying can work normally, and at the same time, it can also block the upper and lower air pressure of the unloader and play a role in air lock. Therefore, the star shaped unloader is an important component commonly used in pneumatic conveying systems.

　　不銹鋼正壓氣力輸送旋轉閥/風送式旋轉閥主要應用于壓差不高于2 bar(Kg/cm2)的負壓和正壓輸送系統的供料端給料?！　≌龎簹饬斔托D(zhuǎn)閥適用于工藝要求無殘留的粘性物料的氣力輸送供料端?！　≌龎簹饬斔托D(zhuǎn)閥設計特點：　　殼體及主要零部件采用精密鑄造，外形美觀;　　入口為圓形與料倉或管道連接，出口在下部側通;　　結構緊湊，節約空間，安裝方便;　　開放式轉子，低漏氣設計，8/10/12葉片設計;　　均壓排氣口，提高物料的填充率，降低進料口架橋堵料風險;　　可針對不同工況非標定向設計。【電話/微信咨詢：陳經理18068546632】　　常州同得利在強化企業管理的基礎上，依靠科技進步提高技術含量，先進的生產加工設備，領 先的管理理念，高素質的員工團隊，有效的質量保障體系和完善的售后服務，為制造高品質的產品提供可靠的保證，極大的滿足了各行業的需求，深受廣大客戶的信賴?！倦娫?微信咨詢：陳經理18068546632】 《掃二維碼-添加 陳經理 微信-咨詢不銹鋼正壓氣力輸送旋轉閥》　　The positive pressure pneumatic conveying rotary valve is suitable for the pneumatic conveying feeding end of viscous materials that require no residue in the process.　　Design features of positive pressure pneumatic conveying rotary valve:　　The shell and main components are precision cast, with a beautiful appearance;　　The inlet is circular and connected to the silo or pipeline, while the outlet is connected to the lower side;　　Compact structure, space saving, easy installation;　　Open rotor, low leakage design, 8/10/12 blade design;　　Equal pressure exhaust port, improve the filling rate of materials, and reduce the risk of bridging and blocking materials at the feeding port;　　It can be designed with non-standard orientation for different working conditions.

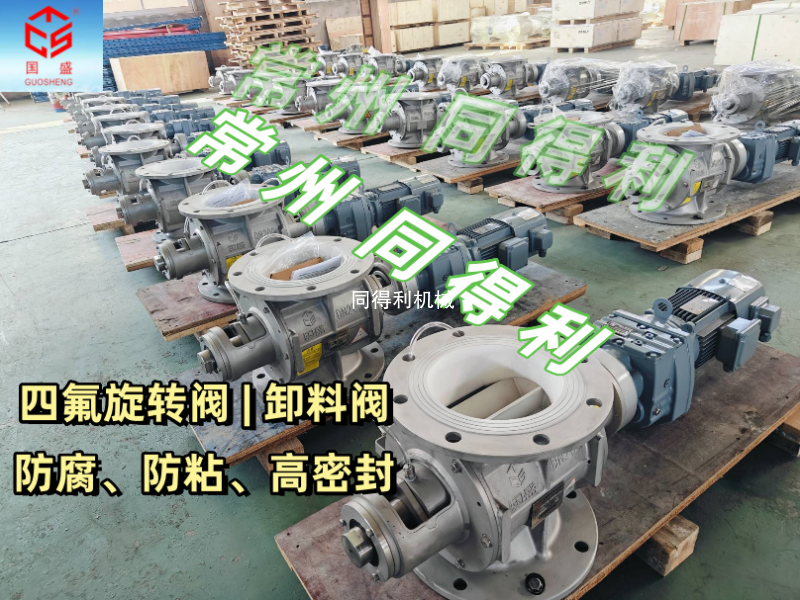

　　旋轉閥的正壓氣力輸送設備,支撐架的上方安裝有旋轉閥,旋轉閥的進口安裝有儲料機,旋轉閥的出口連通有正壓氣力輸送.通過在連接管上連通輔助氣管,并將輔助氣管引至儲料筒與儲料筒貫通,當儲料筒內部下料不通暢的時候,打開手閥,使正壓氣力輸送裝置輸送的氣流進行分流,讓氣流從儲料筒的上方進入到儲料筒的內部粉料進行加壓將物料向儲料筒的底部沖擊,從而使粉料能夠順利的通過儲料筒和旋轉閥體的連接處,達到了提升物料輸送效率的效果.　　四氟旋轉閥/卸料閥/放料閥采用四氟材料制造，具有極強的耐腐蝕性。它能夠承受各種強酸、強堿、有機溶劑和腐蝕性介質的侵蝕，確保在化學反應過程中旋轉閥門的穩定和可靠運行?！　∷姆鷥?nèi)襯旋轉閥表面具有良好的不粘附性，能夠防止旋轉閥表面附著物的黏附，避免管道物料：粉體/顆粒料在長期運行過程中出現結垢、石灰積垢等現象，從而提高了旋轉卸料閥的效率?！倦娫?微信咨詢：陳經理18068546632】         《掃二維碼-添加 陳經理 微信-咨詢 四氟旋轉閥》　　The positive pressure pneumatic conveying equipment with a rotary valve is installed above the support frame. The inlet of the rotary valve is equipped with a material storage machine, and the outlet of the rotary valve is connected to positive pressure pneumatic conveying.　　By connecting the auxiliary air pipe to the connecting pipe and connecting it to the storage cylinder, when the feeding inside the storage cylinder is not smooth, the manual valve is opened to divert the airflow conveyed by the positive pressure pneumatic conveying device, allowing the airflow to enter the interior of the storage cylinder from above and pressurize the powder to impact the bottom of the storage cylinder, so that the powder can smoothly pass through the connection between the storage cylinder and the rotating valve body, achieving the effect of improving material conveying efficiency.

適用于常規物料的正壓負壓輸送卸料，加工精度高，漏氣系數小，下料穩定。
