參數名稱 | 參數值 |
---|---|
品名 | 尼龍快拆式旋轉閥,尼龍卸料閥 |
主要結構 | 殼體、葉輪、端蓋 |
材質 | 改性尼龍 |
輸送物料(介質) | 適用于不可接觸金屬物料的卸料 |
品牌 | 常州同得利,國盛商標 |
尼龍快拆式旋轉閥密封優越,用感無憂:結構穩定,密封性能良好。可用于粉料、小顆粒物料,在正負極壓差吸送過程中將物料分離排出。采用加厚葉輪設計,與殼體配合間隙小,結構精密,使用過程中不易漏風不易漏料,防堵耐用。

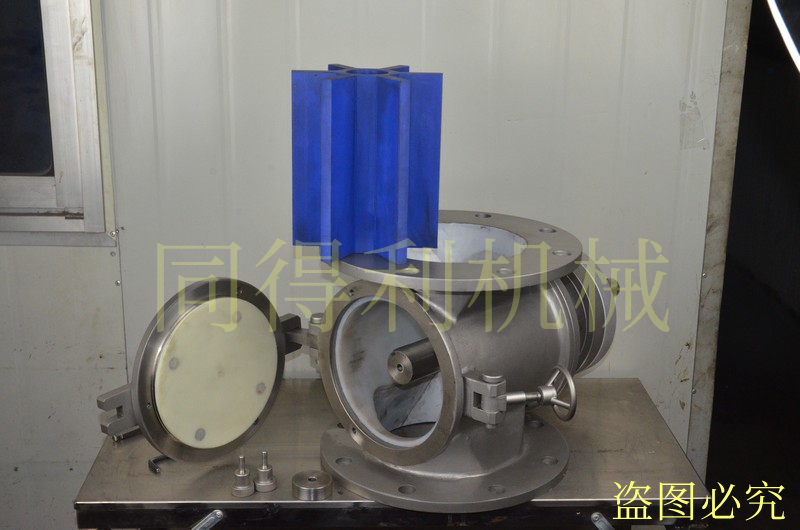

此產品由本公司自主研制,適用于不可接觸金屬物料的卸料。箱體、葉輪以及端蓋,都采用整塊尼龍銑削加工,結構牢靠,運行無噪音,相較于陶瓷閥,可以節省成本,是鋰電行業新寵。【電話/微信咨詢:陳經理18068546632】
快速清洗型:快速清洗旋轉閥制作精致、成功使用德、日技術制造之精華。產品拆裝靈活、易于清洗。主要用于化工、制藥、食品等行業高衛生標準的物料卸料及經常更換物料的場所工作。
可拆卸葉輪:便于快速拆卸清洗旋轉閥的物料接觸面。
驅動方式:鏈驅動/馬達直連驅動。
動力配置:擺線針輪減速機,Y系列電機(可按客戶指定動力配置)。
材質:尼龍系列。
滑桿式:清洗前的拆卸。松開螺栓手柄,沿導柱將端蓋輕輕拉至極限,抽出葉輪,雙手握住葉輪兩端抽頸取出。清洗后,裝入葉輪(轉動葉輪使花鍵齒合),推入端蓋(轉動活動軸柄使花鍵齒合),擰緊螺栓手柄。【電話/微信咨詢:陳經理18068546632】
快開門式:操作方法基本如上所述。
《掃二維碼-添加 陳經理 微信-咨詢產品或定制》
Nylon quick release rotary valve has superior sealing and worry free use: stable structure and good sealing performance. Can be used for powder and small particle materials, to separate and discharge materials during the positive and negative pressure difference suction process. Adopting a thickened impeller design, the clearance between the impeller and the shell is small, the structure is precise, and it is not easy to leak air or materials during use, and it is durable and anti clogging.
This product is independently developed by our company and is suitable for unloading non-contact metal materials. The casing, impeller, and end cover are all processed using a single piece of nylon milling, with a reliable structure and noiseless operation. Compared to ceramic valves, they can save costs and are a new favorite in the lithium battery industry.
Rapid cleaning type: the rapid cleaning rotary valve is exquisitely made, and successfully uses the essence of German and Japanese technology. The product is flexible in disassembly and easy to clean. Mainly used for unloading materials with high hygiene standards in industries such as chemical, pharmaceutical, and food, as well as working in places where materials are frequently replaced.
Detachable impeller: facilitates quick disassembly and cleaning of the material contact surface of the rotary valve.
Drive mode: chain drive/motor direct connection drive.
Power configuration: cycloidal pinwheel reducer, Y-series motor (can be configured according to customer specifications).
Material: Nylon series.
Sliding rod type: disassembly before cleaning. Release the bolt handle, gently pull the end cover along the guide pillar to the limit, extract the impeller, and hold both ends of the impeller with both hands to extract the necks. After cleaning, install the impeller (rotate the impeller to fit the spline teeth), push in the end cover (rotate the movable shaft handle to fit the spline teeth), and tighten the bolt handle.
Quick opening type: The operation method is basically as described above.
